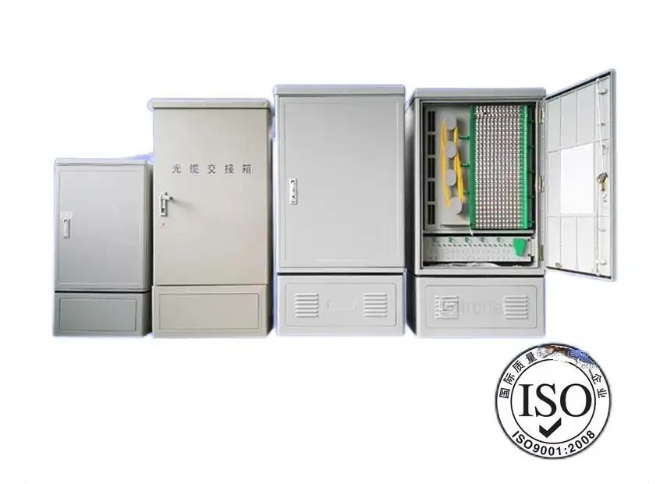

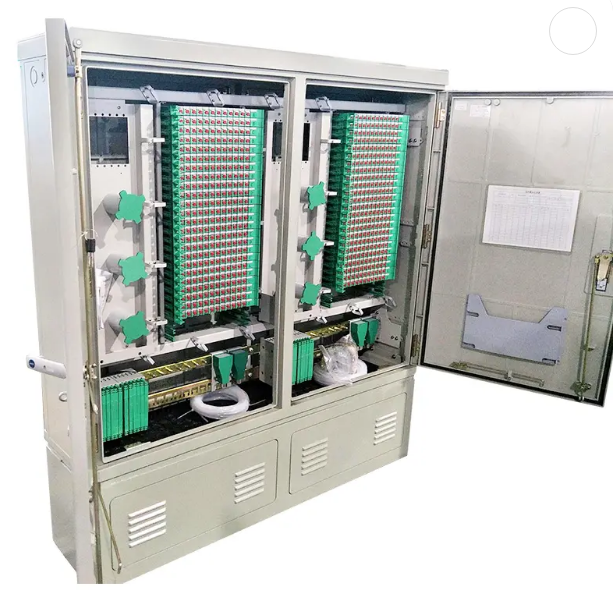

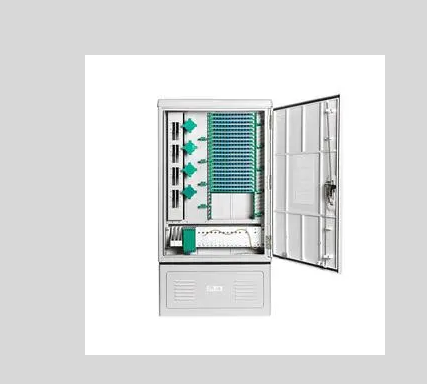

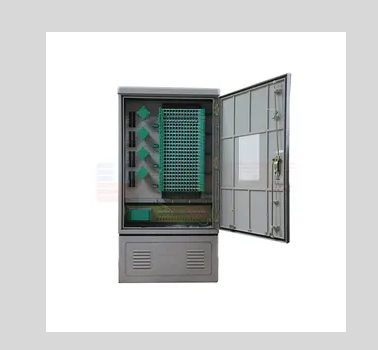

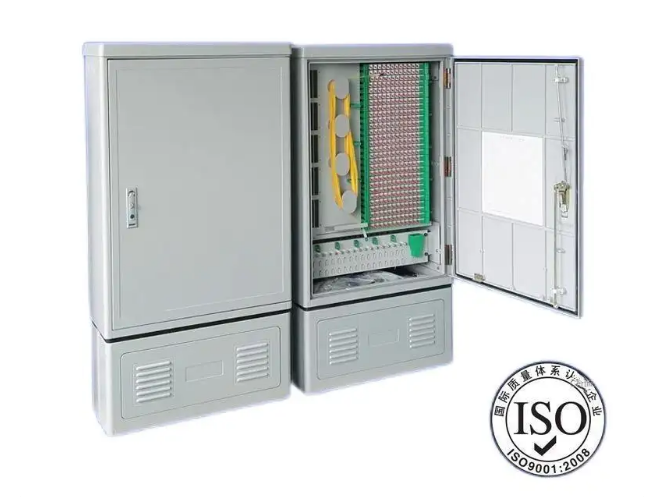

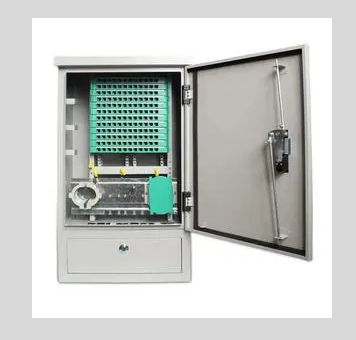

It is convenient for the connection and distribution of fiber optic
cable and also good at distribution in the large capacity exchange
bureau,CATV fiber system and fiber optic communication system.
Features:
1. 19”standard cabinet,large capacity and high density of full modular design;
2. Unit box sets molten, storage and distribution for on;
3. Could install FC,SC adapter;
4. All the side doors could be dismantled,convenient for splice and installation;
5.Optical cables could be lead in or out from the top and the bottom of the frame, also equipped with cable fixtures
6. The clear mark of fiber pigtail,jumper is convenient for controlling and managing
Material | SPCC, anti-corrosion material |
Thickness | 1.2mm and etc are all available to be designed for the material used |
ODF unit | 12/24/48/72/96cores |
Processing | Laser cutting, CNC punching, CNC bending, welding, stamping, etc |
Surface treatment | Painting, hot galvanized, powder coating, polishing, brushing, cataphoresis, etc |
Certification | ISO 9001:2000 |
Deliver time | 15-20 days after deposit received |
Files available | Solid works, Auto CAD, PDF |
Brand | DJT |
IP | IP65&66 |
Main customers | China Unicom, China Telecom, CMCC, Eaton Industries Pty. LTD, FOTUSA Limited Complete-Comms Pty. LTD. |
Application fields | Used for FTTZ, FTTB, FTTR, and wireless base station |
Structure | H: 2600mm, 2200mm, 2000mm and etc. W: 800mm; D: 360mm, 450mm are recommended. The structure can be designed to satisfied the customers’ requirements |
Insulation Resistance | >1000MV/500VDC |
Withstand Voltage | >3000VDC/min and no breakdown fly arc |
Package | Package with hard paper box, Plywood box, wooden box, Fumigation wooden box sealed free from insects,Neutral packing, Bubble wrap inside package, PE,EPE carton, pallet and etc.And all of our package forms are upon customer's requests |
Contract Manufacturing | OEM Service, Design Service, Buyer Label Offered |
Installation Method | Complete module installation |
Capacity | 1,200 lines The capacity could be designed to satisfied the customers’ requirement. |
Corrosion resistant performance | All the materials selected are with high corrosion resistance performance |
