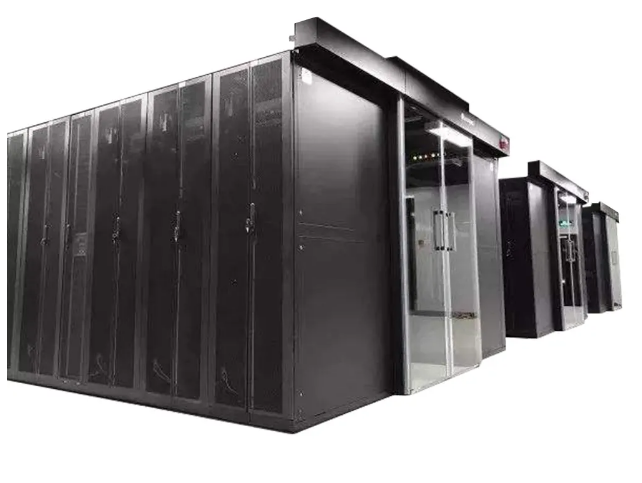

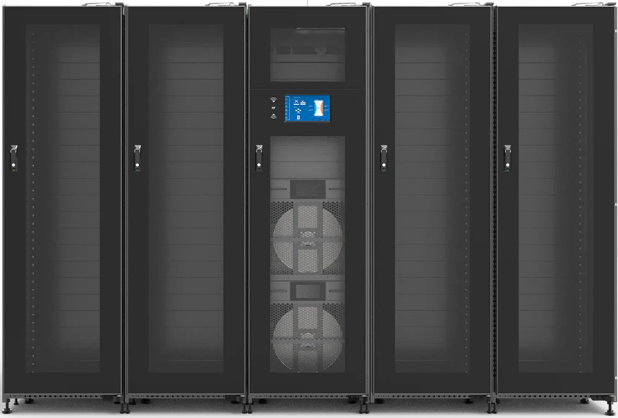

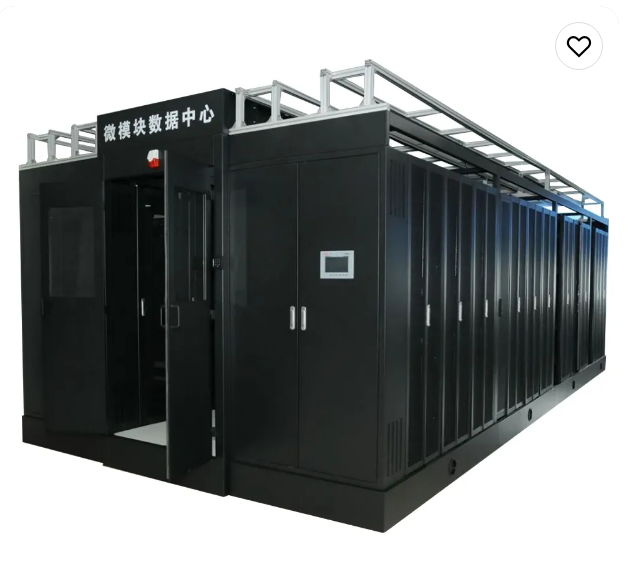

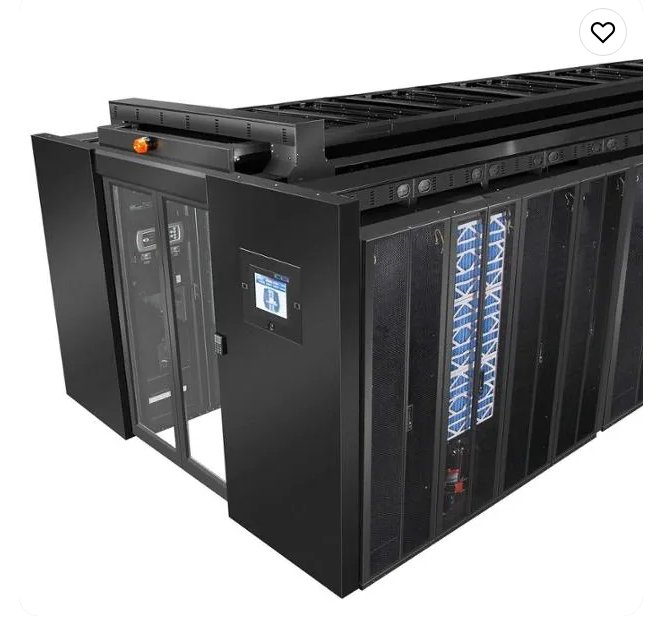

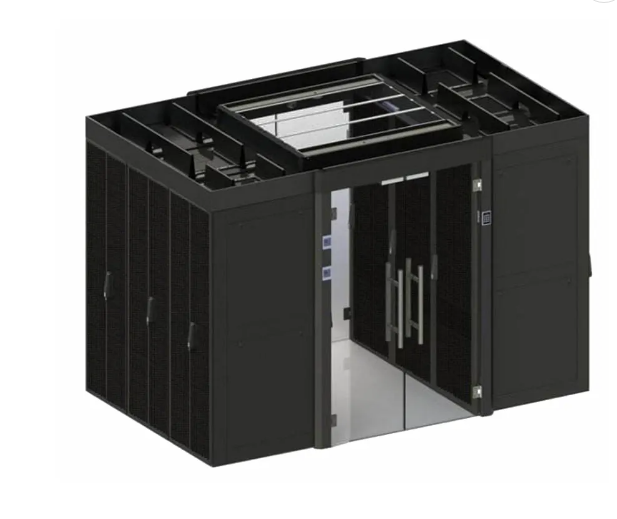

Cold And Hot Aisle Containment Cabinet For Data Center Solution Rack

NameModular Data CenterDimensionssingle-row sealed cold/hot aisle(LWH)*L2400mm2000mm,L15m*L2300mm2000mm,L15mDouble sealed col

Details

Name	Modular Data Center
Dimensions	single-row sealed cold/hot aisle(L×W×H) L×2400mm×2000mm,L≤15m L×2300mm×2000mm,L≤15m Double sealed cold/hot aisle(L×W×H) L×3600mm×2000mm,L≤15m L×3400mm×2000mm,L≤15m *L×3600mm×2200mm,L≤15m
Single cabinet quantity	Single row:2~24 Double row:6~48
Power input	380/400/415Vac,50/60Hz,3Ph+N+PE
Single moudule IT power consumption	Buit-in UPS:112kw External UPS:310kw
Single cabinet power density	21kW/Rack
Reliable grade	Tier II or Tier III
Altitude	0~4000m
Mounting method	Concrete floor mounted ,or plinth mounted
